882M Series: Magnetic Sideflexing Chain
Heavy Duty Single Hinge
Reinforced Top Plate

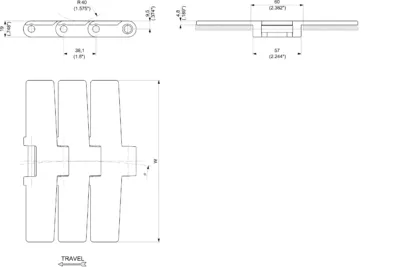

Pitch: 1.5″ (38.1mm)
Thickness: 4.8mm (0.189″)
Hinge: 57mm (2.244″)
Contact Us For Price & Availability…
| Material | Width (mm) | Width (inch) | Plate Thickness (mm) | Plate Thickness (inch) | Working Load (N) | Working Load (lbs) | Weight (kg/m) | Weight (lbs/ft) |
| UP Acetal (POM) | 190.5 | 7.50 | 4.8 | 0.19 | 3910 | 879 | 2.21 | 1.48 |
| UP Acetal (POM) | 254.0 | 10.00 | 4.8 | 0.19 | 3910 | 879 | 2.52 | 1.69 |
| UP Acetal (POM) | 304.8 | 12.00 | 4.8 | 0.19 | 3910 | 879 | 2.76 | 1.85 |
Please Note: Part Numbers can be found within the Regina Technical Datasheet.
 | Ultra-Performance Acetal (POM) | Ultra-performance special acetal resin is particularly suitable for applications where low coefficient of friction and contained dusting are needed. |
Sprockets For 882M Series Belt
Available: Moulded/Machined, Drive/Idle, Multiple Bore Sizes & Various Teeth Quantities.
