Part. 354 Product Guide Rail (Round With Metal Profile)

Tecom Logo
p354 Tynic Automation

Materials:

Plastic profile – polyethylene natural or blue RAL 5005 colour.

Metal profile – AISI 304.

Features:

Supplied already assembled.

Min curvature radius: 145mm

Box QTY:

3Mt. Version – min order 2 lengths. (6Mt.)

6Mt. Version – min order 2 lengths. (12Mt.)

Drawing:

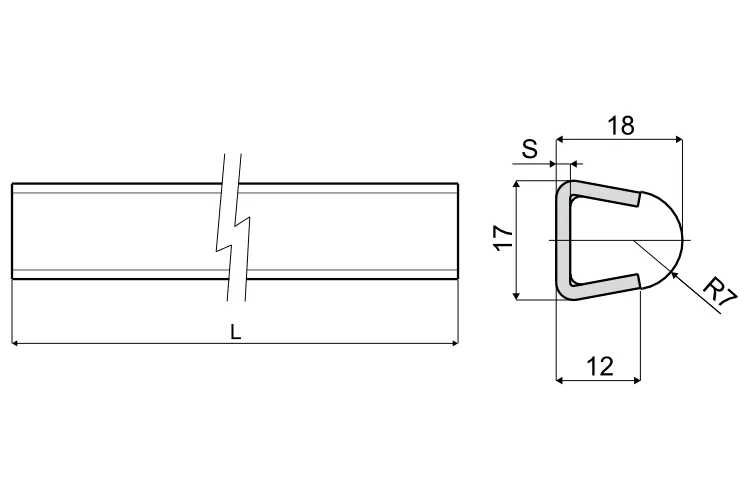

p354 Drawing Tynic Automation
LengthS (mm)ColourCode
6Mt.1.5Natural354 / 84198
3Mt.1.5Natural354 / 84199
6Mt.2Natural354 / 83442
3Mt.2Natural354 / 83626
6Mt.1.5Blue RAL 5005354 / 85484
3Mt.1.5Blue RAL 5005354 / 86726
6Mt.2Blue RAL 5005354 / 85488
3Mt.2Blue RAL 5005354 / 85486

STP Files:

stp Tynic Automation

354 / 84198

stp Tynic Automation

354 / 84199

stp Tynic Automation

354 / 83442

stp Tynic Automation

354 / 83626

stp Tynic Automation

354 / 85484

stp Tynic Automation

354 / 86726

stp Tynic Automation

354 / 85488

stp Tynic Automation

354 / 85486
