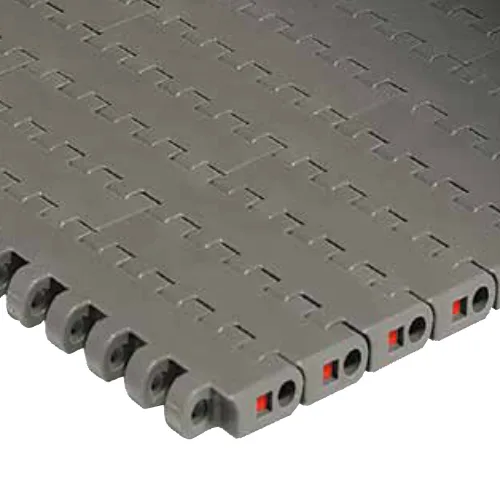

USPM Series: Solid Top Straight Running Modular Belt



Pitch: 1″ (25.4mm)

Thickness: 12.7mm (0.5″)



Contact Us For Price & Availability…

Width (mm)Width (Inch)Optional Tracking GuidesMaterials Available
83.8 3.30NUP, DK2, AR Nylon
85 3.34YUP, DK2, AR Nylon
170 6.69YUP, DK2, AR Nylon
255 10.04YUP, DK2, AR Nylon
340 13.39YUP, DK2, AR Nylon
425 16.73YUP, DK2, AR Nylon
510 20.08YUP, DK2, AR Nylon
595 23.43YUP, DK2, AR Nylon
680 26.77YUP, DK2, AR Nylon
765 30.12YUP, DK2, AR Nylon
85033.46YUP, DK2, AR Nylon
93536.81YUP, DK2, AR Nylon
102040.16YUP, DK2, AR Nylon

Please Note: Part Numbers can be found within the Regina Technical Datasheet.

UP Dark Brown Tynic AutomationUltra-Performance Acetal (POM)Ultra-performance special acetal resin is particularly suitable for applications where low coefficient of friction and contained dusting are needed.
kevlar Tynic AutomationSpecial Kevlar Reinforced Acetal (POM)A next generation material, Acetal resin reinforced with kevlar was developed by REGINA. This material is able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior material qualities, the usage of lubricants can be drastically reduced or eliminated without losing performance in conveyor applications.
EFAST Tynic AutomationEcological Friction Abating PlasticAn ultimate dry running acetal resin, REGINA utilised its expertise in high performance resins. E-FAST material is capable of exceeding todays high standards of speed and productivity. This is due to its unique characteristics of significantly lower coefficient of friction and almost complete dry running conditions.
Nylon AR Tynic AutomationAbrasion Resistant NylonSuitable for glass manufacturing applications. Reinforced polyamide with excellent wear resistance and low dusting. Only for dry running applications.

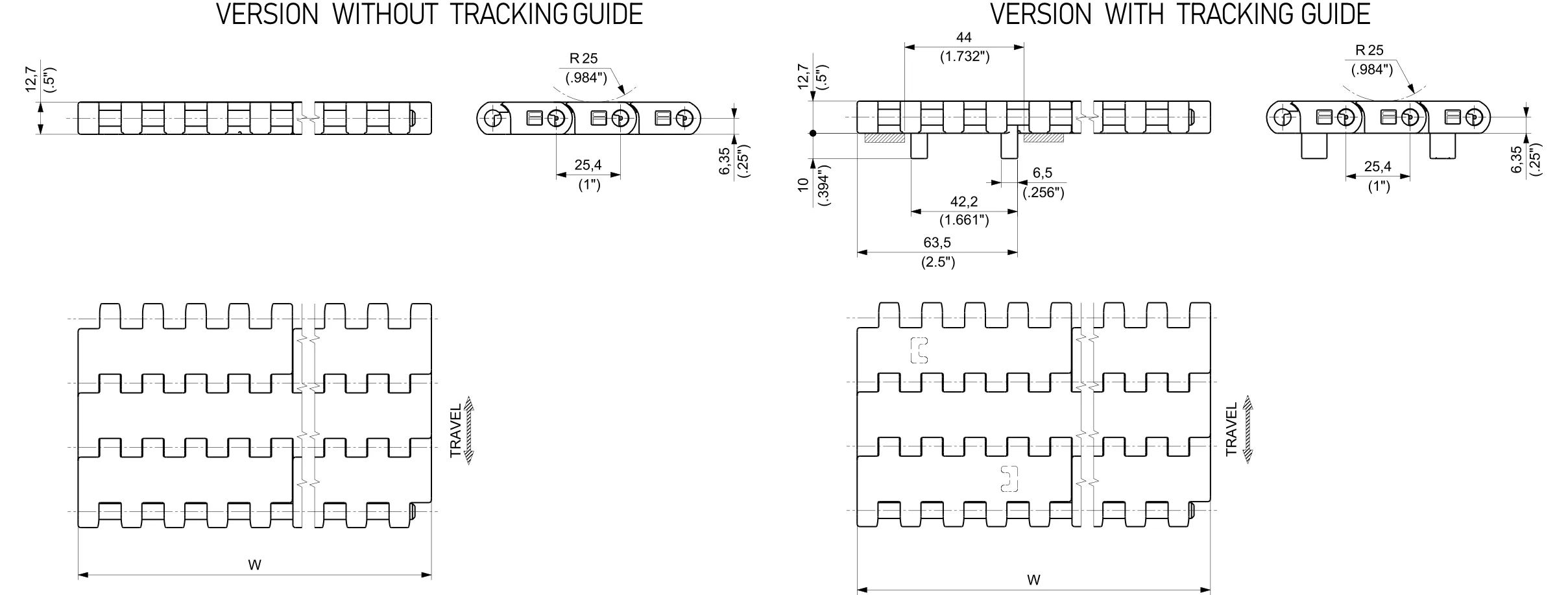

UPSM chain Tynic Automation

Sprockets For USPM Series Belt

820s sprocket Tynic Automation

Available: Moulded/Machined, Drive/Idle, Multiple Bore Sizes & Various Teeth Quantities.

See Regina Technical Datasheets.
