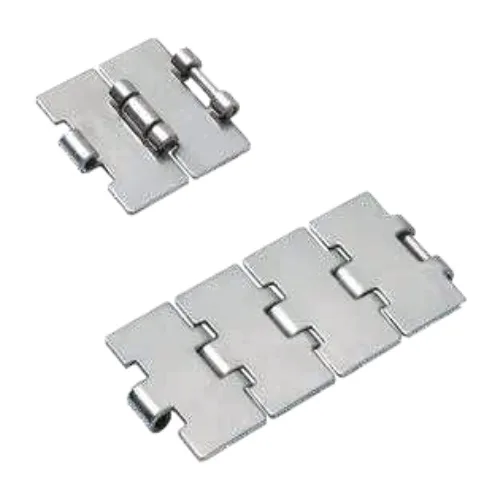

915 Series: Single Hinge Straight Running Chain



Pitch: 1.5″ (38.1mm)

Thickness: 3mm (0.118″)

Hinge: 41.6mm (1.654″)

Reduced Plate Gap (1.6mm)

Contact Us For Price & Availability…

MaterialWidth (mm)Width (inch)Surface Finish (RA)Polished HingesYield Load Average (N)Yield Load Average (lbs)Weight (kg/m)Weight (lbs/ft)
PRIMA57.12.250.3NO850019132.001.34
PRIMA63.52.500.3NO850019132.141.44
PRIMA66.72.630.3NO850019132.211.49
PRIMA82.63.250.3YES850019132.571.72
PRIMA83.83.300.3YES850019132.601.75
PRIMA88.93.500.3NO850019132.711.82
PRIMA101.64.000.3NO850019132.992.00
PRIMA114.34.500.3NO850019133.282.20
PRIMA152.46.000.3NO850019134.132.78
PRIMA190.57.500.3NO850019134.993.35

Please Note: Part Numbers can be found within the Regina Technical Datasheet.

prima material Tynic AutomationPRIMA – Superior Grade Ferritic Stainless SteelSuperior grade of cold rolled special ferritic stainless steel. Special alloys offer very good wear and mechanical properties. Particularly suitable for high productivity lines.
ass Tynic AutomationAustenitic Stainless Steel (PIN MATERIAL)Austenitic stainless steel guarrentees excellent corrosion resistance to withstand chemical. Very good wear resistance.

915 s drawing Tynic Automation

Sprockets For 915 Series Belt

820s sprocket Tynic Automation

Available: Moulded/Machined, Drive/Idle, Multiple Bore Sizes & Various Teeth Quantities.

See Regina Technical Datasheets.
