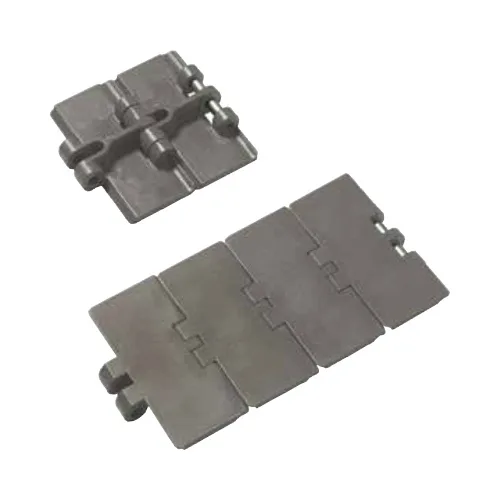

820 Series: Single Hinge Straight Running Chain
Pitch: 1.5″ (38.1mm)
Thickness: 4mm (0.157″)
Hinge: 41.6mm (1.638″)
Contact Us For Price & Availability…
| Material | Width (mm) | Width (inch) | Plate Thickness (mm) | Plate Thickness (inch) | Working Load (N) | Working Load (lbs) | Weight (kg/m) | Weight (lbs/ft) |
| UP Acetal (POM) | 82.6 | 3.25 | 4.0 | 0.16 | 1600 | 360 | 0.87 | 0.58 |
| UP Acetal (POM) | 83.8 | 3.30 | 4.0 | 0.16 | 1600 | 360 | 0.88 | 0.59 |
| UP Acetal (POM) | 101.6 | 4.00 | 4.0 | 0.16 | 1600 | 360 | 0.95 | 0.64 |
| UP Acetal (POM) | 114.3 | 4.50 | 4.0 | 0.16 | 1600 | 360 | 1.03 | 0.69 |
| UP Acetal (POM) | 152.4 | 6.00 | 4.0 | 0.16 | 1600 | 360 | 1.25 | 0.84 |
| UP Acetal (POM) | 190.5 | 7.50 | 4.0 | 0.16 | 1600 | 360 | 1.35 | 0.90 |
| Kevlar Reinforced Acetal (DK2) | 82.6 | 3.25 | 4.0 | 0.16 | 1600 | 360 | 0.85 | 0.57 |
| Kevlar Reinforced Acetal (DK2) | 83.8 | 3.30 | 4.0 | 0.16 | 1600 | 360 | 0.86 | 0.58 |
| Kevlar Reinforced Acetal (DK2) | 114.3 | 4.50 | 4.0 | 0.16 | 1600 | 360 | 1.00 | 0.67 |
| Kevlar Reinforced Acetal (DK2) | 190.5 | 7.50 | 4.0 | 0.16 | 1600 | 360 | 1.36 | 0.90 |
| E-FAST | 82.6 | 3.25 | 4.0 | 0.16 | 1600 | 360 | 0.85 | 0.57 |
| E-FAST | 83.8 | 3.30 | 4.0 | 0.16 | 1600 | 360 | 0.86 | 0.58 |
| E-FAST | 114.3 | 4.50 | 4.0 | 0.16 | 1600 | 360 | 1.00 | 0.67 |
Please Note: Part Numbers can be found within the Regina Technical Datasheet.
 | Ultra-Performance Acetal (POM) | Ultra-performance special acetal resin is particularly suitable for applications where low coefficient of friction and contained dusting are needed. |
 | Special Kevlar Reinforced Acetal (DK2) | A next generation material, Acetal resin reinforced with kevlar was developed by REGINA. This material is able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior material qualities, the usage of lubricants can be drastically reduced or eliminated without losing performance in conveyor applications. |
 | Ecological Friction Abating Plastic | An ultimate dry running acetal resin, REGINA utilised its expertise in high performance resins. E-FAST material is capable of exceeding todays high standards of speed and productivity. This is due to its unique characteristics of significantly lower coefficient of friction and almost complete dry running conditions. |
Sprockets For 820 Series Chain
Available: Moulded/Machined, Drive/Idle, Multiple Bore Sizes & Various Teeth Quantities.
