Part. 381 Chain Guide Profile
Materials:
Guide profile: Green, white, black OR blue RAL 5005 polyethylene.
Metal profile: AISI 430
Box QTY:
3Mt. min order of 2 lengths (6Mt.)
6Mt. min order of 2 lengths (12Mt.)

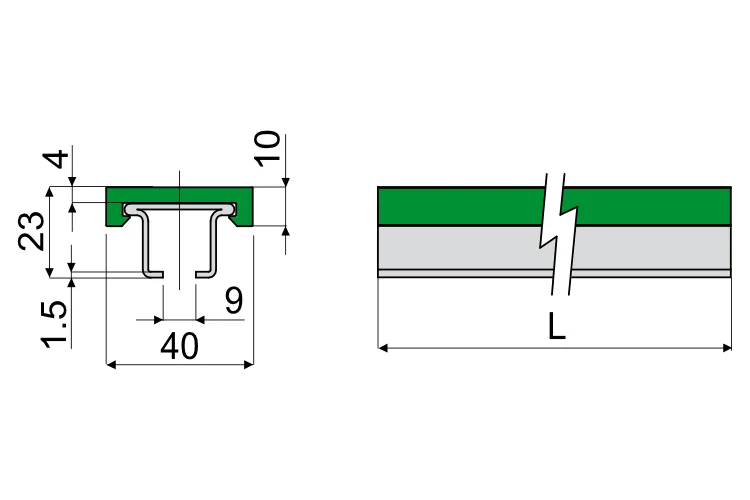

Drawing:
| Length | Colour | Code |
| 3Mt. | Green | 381 / 84086 |
| 6Mt. | Green | 381 / 84955 |
| 3Mt. | White | 381 / 84946 |
| 6Mt. | White | 381 / 84947 |
| 3Mt. | Black | 381 / 84952 |
| 6Mt. | Black | 381 / 84953 |
| 3Mt. | Blue RAL 5005 | 381 / 88129 |
| 6Mt. | Blue RAL 5005 | 381 / 88124 |
STP Files:
381 / 84086
381 / 84955
381 / 84946
381 / 84947
381 / 84952
381 / 84953
381 / 88129
381 / 88124
