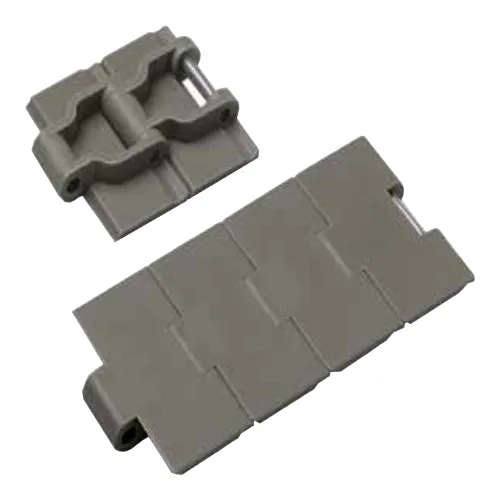

828 Series: Reinforced Single Hinge Straight Running Chain


Reduced Plate Gap.

Pitch: 1.5″ (38.1mm)

Thickness: 4mm (0.157″)

Hinge: 42mm (1.654″)

Contact Us For Price & Availability…

MaterialWidth (mm)Width (inch)Plate Thickness (mm)Plate Thickness (inch)Working Load (N)Working Load (lbs)Weight (kg/m)Weight (lbs/ft)
UP Acetal (POM)
UP Acetal (POM)83.83.304.00.1620004501.020.69
UP Acetal (POM)
Kevlar Reinforced Acetal (DK2)82.64.504.00.1620004501.010.68
Kevlar Reinforced Acetal (DK2)
Kevlar Reinforced Acetal (DK2)114.37.504.00.1620004501.180.79

Please Note: Part Numbers can be found within the Regina Technical Datasheet.

UP Dark Brown Tynic AutomationUltra-Performance Acetal (POM)Ultra-performance special acetal resin is particularly suitable for applications where low coefficient of friction and contained dusting are needed.
kevlar Tynic AutomationSpecial Kevlar Reinforced Acetal (DK2)A next generation material, Acetal resin reinforced with kevlar was developed by REGINA. This material is able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior material qualities, the usage of lubricants can be drastically reduced or eliminated without losing performance in conveyor applications.
EFAST Tynic AutomationEcological Friction Abating PlasticAn ultimate dry running acetal resin, REGINA utilised its expertise in high performance resins. E-FAST material is capable of exceeding todays high standards of speed and productivity. This is due to its unique characteristics of significantly lower coefficient of friction and almost complete dry running conditions.
ass Tynic AutomationStainless Steel (PIN Material)Stainless Steel for the best corrosion resistance to withstand chemical attack.
Prelubricated with high performance lube suitable for the food industry (USDA H1 approved) which guarantees long-lasting effect for the chain.

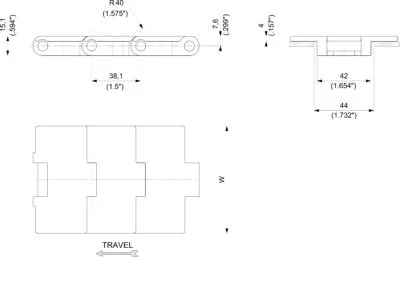

jpeg 828 Tynic Automation

Sprockets For 828 Series Belt

820s sprocket Tynic Automation

Available: Moulded/Machined, Drive/Idle, Multiple Bore Sizes & Various Teeth Quantities.

See Regina Technical Datasheets.
