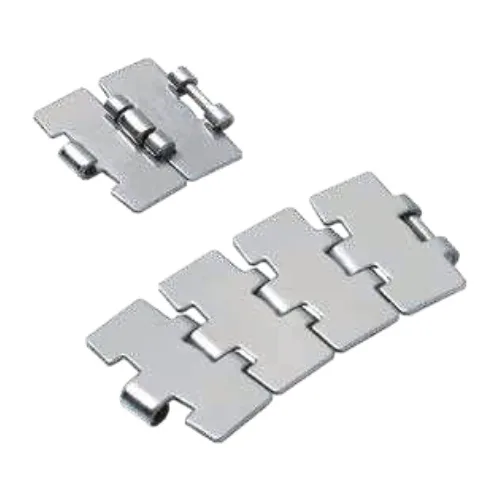

981M/PHD 981M Series: Magnetic Sideflexing Chain



Pitch: 1.5″ (38.1mm)

Thickness: 3mm (0.118″)

Hinge: 42mm (1.654″)

Reduced Plate Gap

Increased Pin Hardness (PHD 981M Series)

Special XPHD Chains for Pressureless Combiners

Contact Us For Price & Availability…

MaterialWidth (mm)Width (inch)Surface Finish (RA)Polished HingesYield Load Average (N)Yield Load Average (lbs)Weight (kg/m)Weight (lbs/ft)
FERRITIC SS82.63.250.3YES540012142.431.63
FERRITIC SS83.83.300.3YES540012142.451.63
FERRITIC SS114.34.500.3YES540012143.052.05
FERRITIC SS190.57.500.3YES540012144.432.98
PRIMA82.63.250.3YES850019112.441.64
PRIMA83.83.300.3YES850019112.471.66
PRIMA114.34.500.3YES850019113.072.06
PRIMA190.57.500.3YES850019114.473.01

Please Note: Part Numbers can be found within the Regina Technical Datasheet.

MaterialWidth (mm)Width (inch)Surface Finish (RA)Polished HingesYield Load Average (N)Yield Load Average (lbs)Weight (kg/m)Weight (lbs/ft)
PRIMA82.63.250.2YES850019112.441.64
PRIMA83.83.300.2YES850019112.471.66
PRIMA114.34.500.2YES850019113.072.06
PRIMA190.57.500.2YES850019114.473.01

Please Note: Part Numbers can be found within the Regina Technical Datasheet.

prima material Tynic AutomationPRIMA – Superior Grade Ferritic Stainless SteelSuperior grade of cold rolled special ferritic stainless steel. Special alloys offer very good wear and mechanical properties. Particularly suitable for high productivity lines.
                           Untitled Tynic AutomationFerritic Stainless SteelCold rolled ferritic stainless steel. Good wear, mechanical and corrosion resistance. For food & beverage applications.
ass Tynic AutomationAustenitic Stainless Steel (PIN MATERIAL)Austenitic stainless steel guarrentees excellent corrosion resistance to withstand chemical. Very good wear resistance.

s981M PHD 981M Drawing Tynic Automation

Sprockets For 981M/PHD 981M Series Belt

820s sprocket Tynic Automation

Available: Moulded/Machined, Drive/Idle, Multiple Bore Sizes & Various Teeth Quantities.

See Regina Technical Datasheets.
