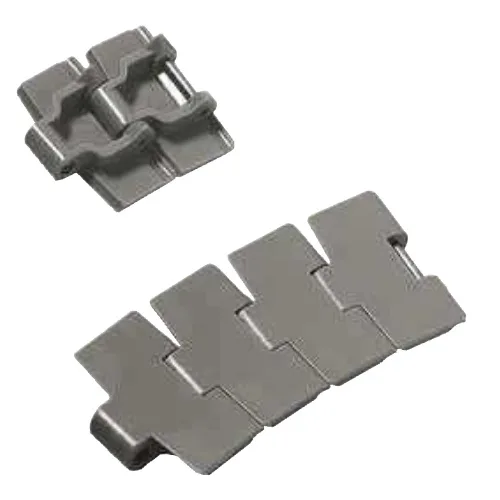

879 Series: Reinforced Sidflexing Running Chain



Bevel

Reinforced Top Plate

Pitch: 1.5″ (38.1mm)

Thickness: 4.8mm (0.188″)

Hinge: 43mm (1.693″)

Contact Us For Price & Availability…

MaterialWidth (mm)Width (inch)Plate Thickness (mm)Plate Thickness (inch)Working Load (N)Working Load (lbs)Weight (kg/m)Weight (lbs/ft)
UP Acetal (POM)82.63.254.80.1920004500.960.65
UP Acetal (POM)114.34.504.80.1920004501.110.75

Please Note: Part Numbers can be found within the Regina Technical Datasheet.

EFAST Tynic AutomationEcological Friction Abating PlasticAn ultimate dry running acetal resin, REGINA utilised its expertise in high performance resins. E-FAST material is capable of exceeding todays high standards of speed and productivity. This is due to its unique characteristics of significantly lower coefficient of friction and almost complete dry running conditions.

p879 Drawing Tynic Automation

Sprockets For 879 Series Belt

820s sprocket Tynic Automation

Available: Moulded/Machined, Drive/Idle, Multiple Bore Sizes & Various Teeth Quantities.

See Regina Technical Datasheets.
