1600 Series: Solid Top Straight Running Modular Belt



Pitch: 1″ (25.4mm)

Thickness: 8.7mm (0.343″)



Contact Us For Price & Availability…

Width (mm)Width (Inch)Optional Tracking GuidesMaterials Available
85 3.35YUP, DK2 & EFAST
170 6.69YUP, DK2 & EFAST
255 10.04YUP, DK2 & EFAST
340 13.39YUP, DK2 & EFAST
425 16.73YUP, DK2 & EFAST
510 20.08YUP, DK2 & EFAST
595 23.43YUP, DK2 & EFAST
680 26.77YUP, DK2 & EFAST
765 30.12YUP, DK2 & EFAST
850 33.46YUP, DK2 & EFAST
93536.81YUP, DK2 & EFAST
102040.16YUP, DK2 & EFAST
83.83.30NUP, DK2 & EFAST

Please Note: Part Numbers can be found within the Regina Technical Datasheet.

UP Dark Brown Tynic AutomationUltra-Performance Acetal (POM)Ultra-performance special acetal resin is particularly suitable for applications where low coefficient of friction and contained dusting are needed.
kevlar Tynic AutomationSpecial Kevlar Reinforced Acetal (POM)A next generation material, Acetal resin reinforced with kevlar was developed by REGINA. This material is able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior material qualities, the usage of lubricants can be drastically reduced or eliminated without losing performance in conveyor applications.
EFAST Tynic AutomationEcological Friction Abating PlasticAn ultimate dry running acetal resin, REGINA utilised its expertise in high performance resins. E-FAST material is capable of exceeding todays high standards of speed and productivity. This is due to its unique characteristics of significantly lower coefficient of friction and almost complete dry running conditions.

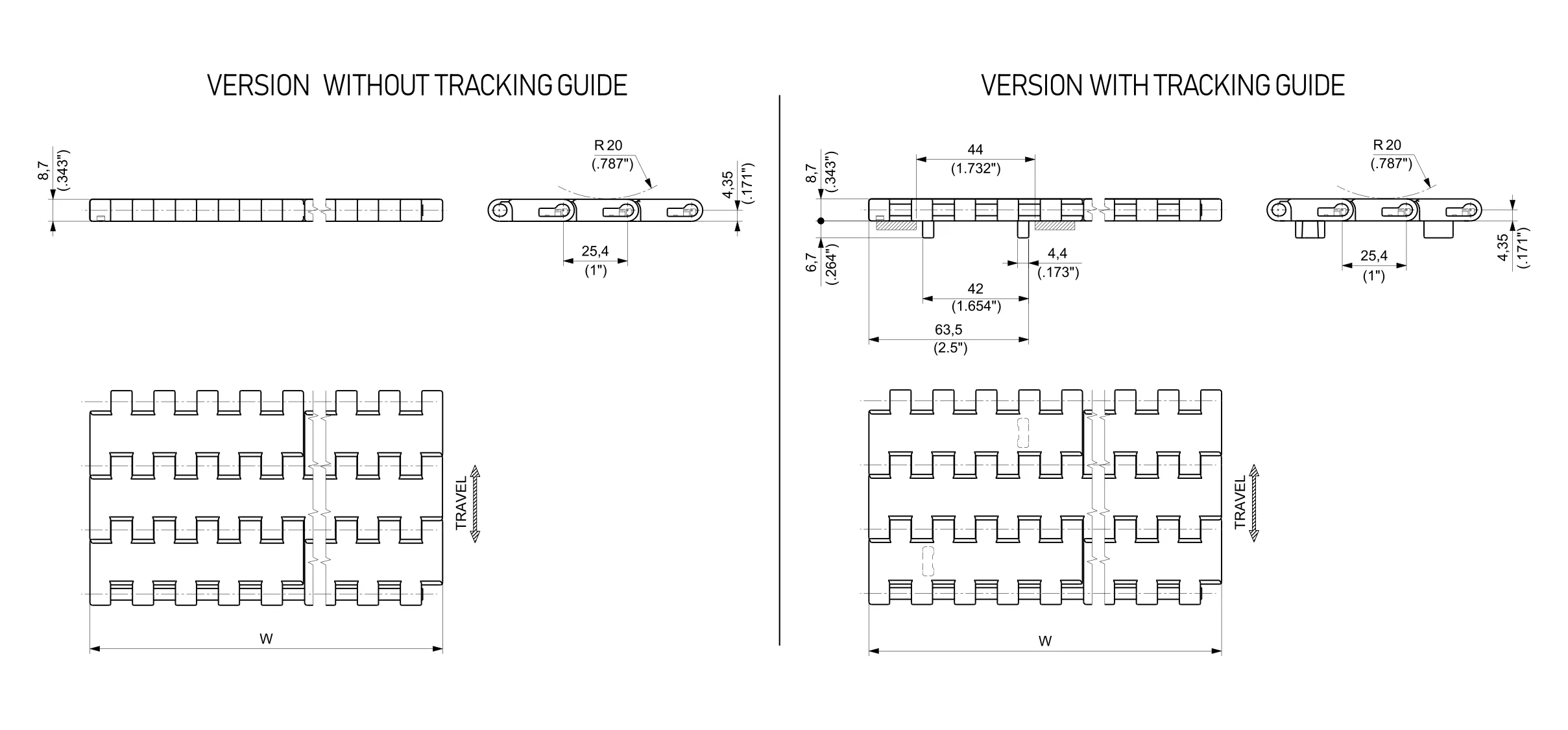

1600s drawing Tynic Automation

Sprockets For 1600 Series Belts

820s sprocket Tynic Automation

Available: Moulded/Machined, Drive/Idle, Multiple Bore Sizes & Various Teeth Quantities.

See Regina Technical Datasheets.
