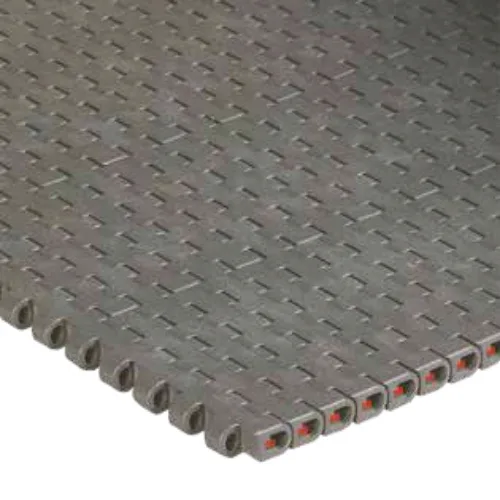

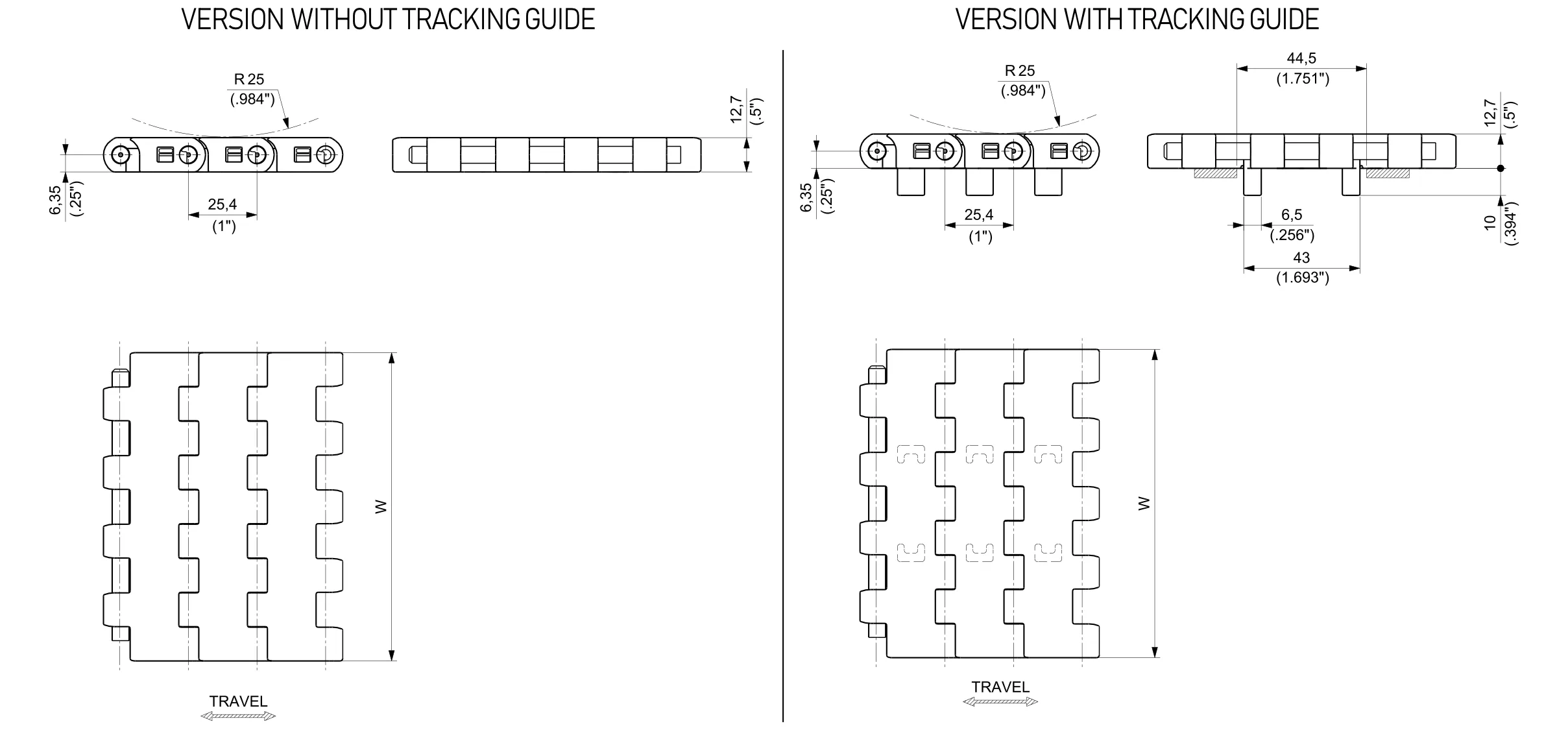

USP Series: Solid Top Straight Running Modular Belt
Pitch: 1″ (25.4mm)
Thickness: 12.7mm (0.5″)
Contact Us For Price & Availability…
| Width (mm) | Width (Inch) | Optional Tracking Guides | Materials Available |
| 82.6 | 3.25 | Y | UP, DK2 & AR Nylon. |
| 114.3 | 4.50 | Y | UP, DK2 & AR Nylon. |
| 190.5 | 7.50 | Y | UP, DK2 & AR Nylon. |
| 152.2 | 6 | N | UP, DK2 & AR Nylon. |
| 228.6 | 9 | N | UP, DK2 & AR Nylon. |
| 304.8 | 12 | N | UP, DK2 & AR Nylon. |
| 381.0 | 15 | N | UP, DK2 & AR Nylon. |
| 457.2 | 18 | N | UP, DK2 & AR Nylon. |
| 533.4 | 21 | N | UP, DK2 & AR Nylon. |
| 609.6 | 24 | N | UP, DK2 & AR Nylon. |
| 685.8 | 27 | N | UP, DK2 & AR Nylon. |
| 762.0 | 30 | N | UP, DK2 & AR Nylon. |
| 838.2 | 33 | N | UP, DK2 & AR Nylon. |
| 914.4 | 36 | N | UP, DK2 & AR Nylon. |
| 996.6 | 39 | N | UP, DK2 & AR Nylon. |
| 1066.8 | 42 | N | UP, DK2 & AR Nylon. |
| 1143.0 | 45 | N | UP, DK2 & AR Nylon. |
| 1219.2 | 48 | N | UP, DK2 & AR Nylon. |
| 1295.4 | 51 | N | UP, DK2 & AR Nylon. |
| 1371.6 | 54 | N | UP, DK2 & AR Nylon. |
| 1447.8 | 57 | N | UP, DK2 & AR Nylon. |
| 1524.0 | 60 | N | UP, DK2 & AR Nylon. |
Please Note: Part Numbers can be found within the Regina Technical Datasheet.
 | Ultra-Performance Acetal (POM) | Ultra-performance special acetal resin is particularly suitable for applications where low coefficient of friction and contained dusting are needed. |
 | Special Kevlar Reinforced Acetal (POM) | A next generation material, Acetal resin reinforced with kevlar was developed by REGINA. This material is able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior material qualities, the usage of lubricants can be drastically reduced or eliminated without losing performance in conveyor applications. |
 | Abrasion Resistant Nylon (PA) | Suitable for glass manufacturing applications. Reinforced polyamide with excellent wear resistance and low dusting. Only for dry running applications. |
Sprockets For USP Series Belts
Available: Moulded/Machined, Drive/Idle, Multiple Bore Sizes & Various Teeth Quantities.
